UH4PCC, UH4PBC, High Current Density Surface Mount Ultrafast Rectifiers

New Product UH4PBC, UH4PCC & UH4PDC Vishay General Semiconductor High Current Density Surface Mount Ultrafast Rectifiers .

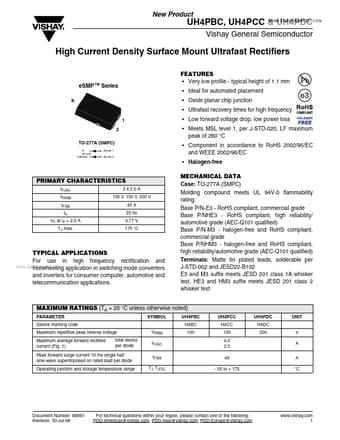

datasheet Preview Page 1 from Datasheet4u.com

UH4PBC_VishaySiliconix.pdf

UH4PCC Datasheet Preview — This datasheet PDF includes multiple part numbers: UH4PCC, UH4PBC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UH4PCC, UH4PBC

Manufacturer:

Vishay ↗ Siliconix

File Size:

144.68 KB

Description:

High Current Density Surface Mount Ultrafast Rectifiers

Note:

This datasheet PDF includes multiple part numbers: UH4PCC, UH4PBC.
Please refer to the document for exact specifications by model.

Features

* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Oxide planar chip junction
* Ultrafast recovery times for high frequency 1 2 TO-277A (SMPC) K Cathode Anode 1 Anode 2 eSMP TM Series K
* Low forward voltage drop, low power loss

Applications

* For use in high frequency rectification and www. DataSheet4U. com freewheeling application in switching mode converters and inverters for consumer computer, automotive and telecommunication applications. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetit
