UH4PDC, UH4PBC - High Current Density Surface Mount Ultrafast Rectifiers

Vishay Siliconix

📥 Download Datasheet

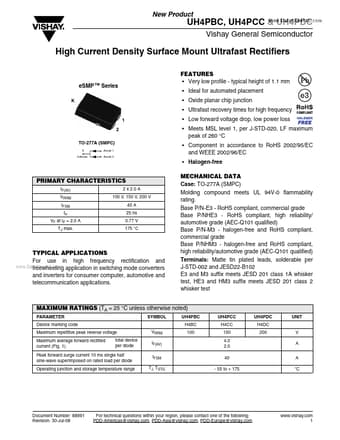

UH4PDC Datasheet Preview — This datasheet PDF includes multiple part numbers: UH4PDC, UH4PBC. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UH4PDC, UH4PBC
Manufacturer	Vishay ↗ Siliconix
File Size	144.68 KB
Description	High Current Density Surface Mount Ultrafast Rectifiers
Datasheet	UH4PBC_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: UH4PDC, UH4PBC. Please refer to the document for exact specifications by model.

UH4PDC Product details

Features

Very low profile - typical height of 1.1 mm.
Ideal for automated placement.
Oxide planar chip junction.
Ultrafast recovery times for high frequency 1 2 TO-277A (SMPC) K Cathode Anode 1 Anode 2 eSMP TM Series K.
Low forward voltage drop, low power loss.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Halogen-free.
