UL6206B

HIGH ACCURACY LINEAR CONSTANT CURRENT LED DRIVER

UL6206B Features

* 5mA ~ 80mA Output Current

* Up to ± 4% Constant Current Accuracy

* No EMC Problem

* Temperature Compensate

* Thermal Shutdown

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UL6206BL-AA3-R UL6206BG-AA3-R UL6206BL-AB3-R UL6206BG-AB3-R UL6206BL-TN3-R U

UL6206B General Description

The UTC UL6206B is a linear constant current IC with a built-in power MOSFET. The output current can be adjusted from 5mA to 80mA, and constant current accuracy up to ± 4%. The application scheme is simple and the cost is low. This device also incorporates temperature compensation and thermal shutdo.

UL6206B Datasheet (236.02 KB)

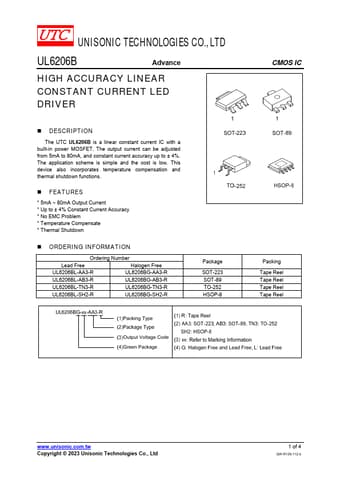

Preview of UL6206B PDF

Datasheet Details

Part number:

UL6206B

Manufacturer:

UTC

File Size:

236.02 KB

Description:

High accuracy linear constant current led driver.
