UL67A

HIGH ACCURACY LINEAR CONSTANT CURRENT LED DRIVER

UL67A Features

* 5mA ~ 30mA Output Current

* Up to ± 4% Constant Current Accuracy

* Built-in Power MOSFET

* No EMC Problem

* Temperature Compensate

* Thermal Shutdown

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UL67AL-xx-SH2-R UL67AG-xx-SH2-R Package HSOP-8 Pac

UL67A General Description

The UTC UL67A is a linear constant current IC with a built-in power MOSFET. The output current can be adjusted from 5mA to 30mA, and constant current accuracy up to ± 4%. The application scheme is simple and the cost is low. This device also incorporates temperature compensation and thermal shutdown.

UL67A Datasheet (182.62 KB)

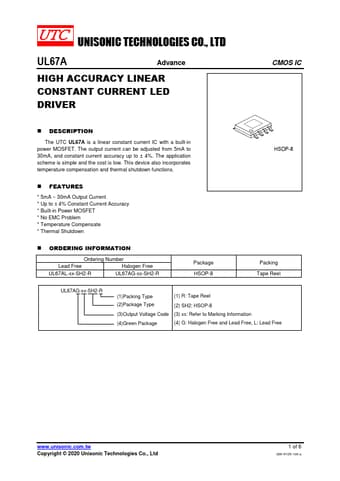

Preview of UL67A PDF

Datasheet Details

Part number:

UL67A

Manufacturer:

UTC

File Size:

182.62 KB

Description:

High accuracy linear constant current led driver.
