UL66C

HIGH ACCURACY LINEAR CONSTANT CURRENT LED DRIVER

UL66C Features

* 5mA ~ 60mA Output Current

* Up to ± 4% Constant Current Accuracy

* No EMC Problem

* Temperature Compensate

* Thermal Shutdown

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UL66CL-xx-AA3-R UL66CG-xx-AA3-R UL66CL-xx-AB3-R UL66CG-xx-AB3-R UL66CL-xx-TN3

UL66C General Description

The UTC UL66C is a linear constant current IC with a built-in power MOSFET. The output current can be adjusted from 5mA to 60mA, and constant current accuracy up to ± 4%. The application scheme is simple and the cost is low. This device also incorporates temperature compensation and thermal shutdown.

UL66C Datasheet (181.04 KB)

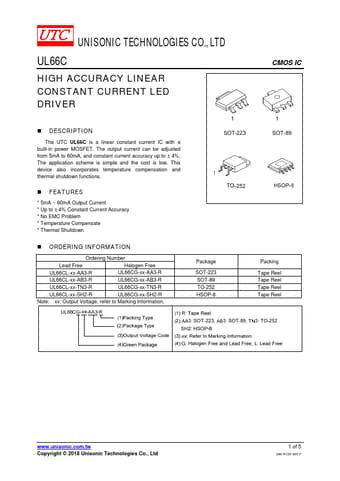

Preview of UL66C PDF

Datasheet Details

Part number:

UL66C

Manufacturer:

UTC

File Size:

181.04 KB

Description:

High accuracy linear constant current led driver.
