ULN2003R Datasheet, Array, UTC

ULN2003R Features

• Array
• Output Current (Single Output): 500mA max
• High Sustaining Voltage Output: 50V min
• Inputs Compatible with Various Types of Logic
• Output Clamp Diod

PDF File Details

Part number:

ULN2003R

Manufacturer:

UTC

File Size:

180.67kb

Download:

📄 Datasheet

Description:

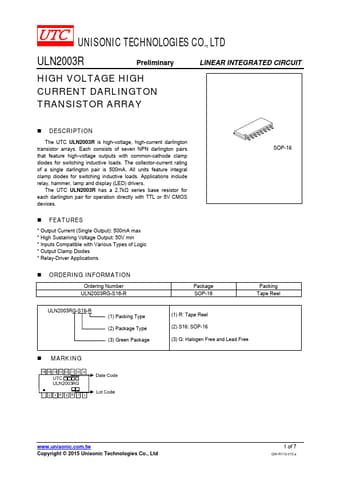

High voltage high current darlington transistor array. The UTC ULN2003R is high-voltage, high-current darlington transistor arrays. Each consists of seven NPN darlington pairs that feature

ULN2003R Application

• Applications include relay, hammer, lamp and display (LED) drivers. The UTC ULN2003R has a 2.7kΩ series base resistor for each darlington pair for o
