ULN2008 Datasheet - UTC

DRIVER CIRCUIT SPECIAL PURPOSE

ULN2008 Features

* Output current (single output): 100mA (MAX.)

* High sustaining voltage output: 50V (MIN.)

* Output clamp diodes

* TTL/CMOS logic level is compatible.

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free ULN2008L-S16-R ULN2008G-S16-R Package SOP-16 SOP-16 Packin

ULN2008 General Description

UTC ULN2008 include 1ch condenser buzzer driver, 4ch relay driver, safety circuit and gate signal detection circuit. The 4ch relay driver include: 1ch independent Darlington Transistor driver, 1ch main relay driver, 2ch relay driver controlled by safety circuit. Current capability of each channel dr.

ULN2008 Datasheet (191.60 KB)

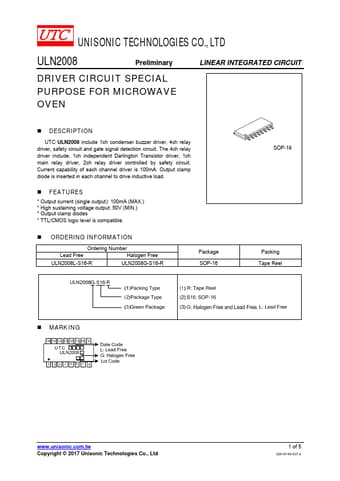

Preview of ULN2008 PDF

Datasheet Details

Part number:

ULN2008

Manufacturer:

UTC

File Size:

191.60 KB

Description:

Driver circuit special purpose.
