1N4948, 1N4942 - 1.0Amp Fast Recovery Rectifiers

1N4948 Description

UUX GROUP INC 1.0Amp Fast Recovery Rectifiers .

1N4948 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4948, 1N4942. Please refer to the document for exact specifications by model.

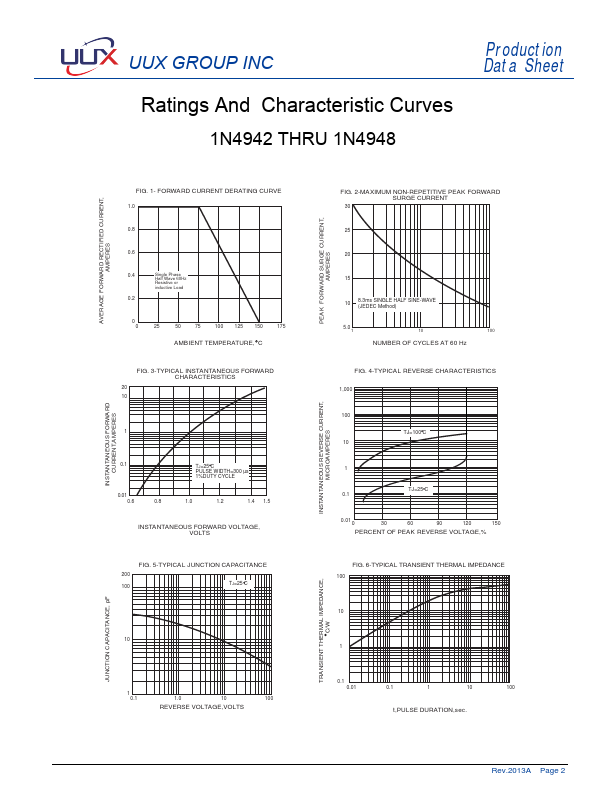

datasheet Preview Page 2

Datasheet Details

Part number
1N4948, 1N4942
Manufacturer
UUX
File Size
309.71 KB
Datasheet
1N4942-UUX.pdf
Description
1.0Amp Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N4948, 1N4942.
Please refer to the document for exact specifications by model.
