UC1608E, UC1608 Datasheet - Ultra Chip

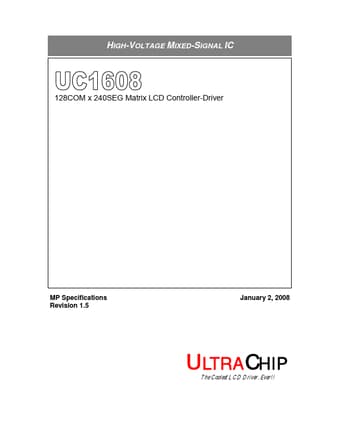

UC1608E 128COM x 240SEG Matrix LCD Controller-Driver

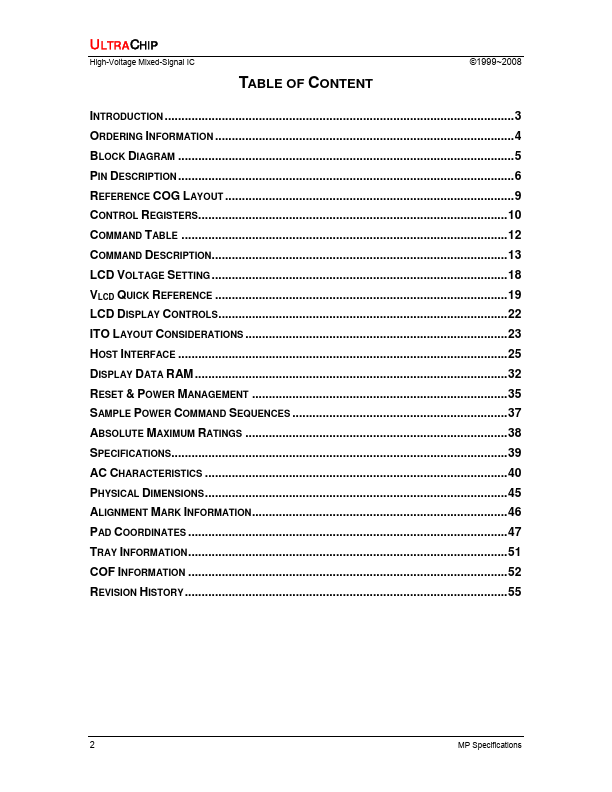

6 REFERENCE COG LAYOUT 9 CONTROL REGISTERS10 COMMAND TABLE 12 COMMAND DESCRIPTION13 LCD VOLTAGE SETTING 18 VLCD QUICK REFERENCE 19 LCD DISPLAY CONTROLS22 ITO LAYOUT CONSIDERATIONS 23 HOST INTERFACE 25 DISPLAY DATA RAM 32 RESET & POWER MANAGEMENT 35 SAMPLE POWER COMMAND SEQUENCES 37 ABSOLUTE MAXIMUM .

UC1608E Features

* to support optimized COG applications.

* VDD (digital) range (Typ.): 2.8 V ~ 3.3V VDD (analog) range (Typ.): 2.8 V ~ 3.3V LCD VOP range: 11.09V ~ 16V

* Available in gold bump dies Bump pitch: 45µM min. Bump gap: 18µM min. Bump surface: > 3000µM2 Revision E_1.

UC1608_UltraChip.pdf

This datasheet PDF includes multiple part numbers: UC1608E, UC1608. Please refer to the document for exact specifications by model.
UC1608E Datasheet Preview Page 2 UC1608E Datasheet Preview Page 3

Datasheet Details

Part number:

UC1608E, UC1608

Manufacturer:

Ultra Chip

File Size:

804.95 KB

Description:

128com x 240seg matrix lcd controller-driver.

Note:

This datasheet PDF includes multiple part numbers: UC1608E, UC1608.
Please refer to the document for exact specifications by model.
