UC1611

Quad Schottky Diode Array

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC UC1611L DIODE ARRAY SCHOTT 50V 1A 20LCCC DigiKey 0 23 units
$13.16

UC1611 Datasheet (162.48 KB)

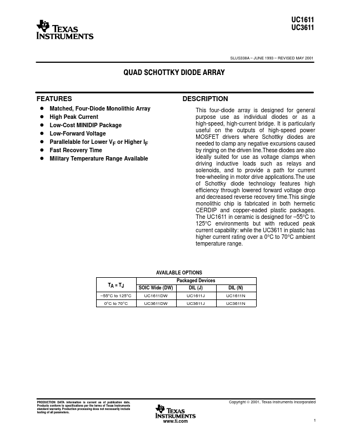

Preview of UC1611 PDF Datasheet

Datasheet Details

Part number:

UC1611

Manufacturer:

Texas Instruments ↗

File Size:

162.48 KB

Description:

Quad schottky diode array

UC1611 Features

* D Matched, Four-Diode Monolithic Array D High Peak Current D Low-Cost MINIDIP Package D Low-Forward Voltage D Parallelable for Lower VF or Higher IF D Fast Recovery Time D Military Temperature Range Available DESCRIPTION This four-diode array is designed for general purpose use as individual diodes

UC1611 General Description

This four-diode array is designed for general purpose use as individual diodes or as a high-speed, high-current bridge. It is particularly useful on the outputs of high-speed power MOSFET drivers where Schottky diodes are needed to clamp any negative excursions caused by ringing on the driven line.T.
