UC1617S 128 X 128 STN Controller Driver

Gold bumped die with MTP function and I C interface 2 www.DataSheet4U.com General Notes APPLICATION INFORMATION For improved readability, the specification contains many application data points. When application information is given, it is advisory and does not form part of the specification for t.

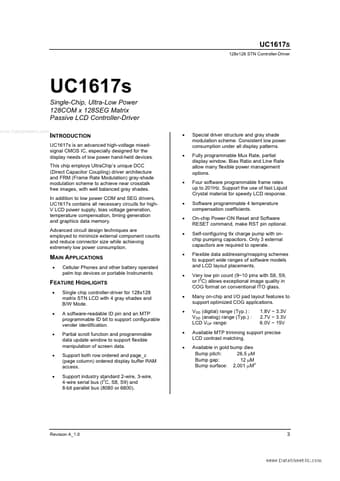

UC1617S 128x128 STN Controller-Driver UC1617s www.DataSheet4U.com Single-Chip, Ultra-Low Power 128COM x 128SEG Matrix Passive LCD Controller-Driver INTRODUCTION UC1617s is an advanced high-voltage mixedsignal CMOS IC, especially designed for the display needs of low power hand-held devices. This chip employs UltraChip’s unique DCC (Direct Capacitor Coupling) driver architecture and FRM (Frame Rate Modulation) gray-shade modulation scheme to achieve near crosstalk free images, with well balance.

UC1617S Features

* to support optimized COG applications. VDD (digital) range (Typ.) : VDD (analog) range (Typ.) : LCD VOP range: 1.8V ~ 3.3V 2.7V ~ 3.3V 6.0V ~ 15V x x x x x MAIN APPLICATIONS x Cellular Phones and other battery operated palm top devices or portable Instruments x x FEATURE HIGHLIGHTS x Single c
