TPA120R1K5A

1200V Super-Junction Power MOSFET

Unigroup

TPA120R1K5A Features

* Very low FOM RDS(on)×Qg

* 100% avalanche tested

* RoHS compliant APPLICATIONS

* Switch Mode Power Supply (SMPS)

* Uninterruptible Power Supply (UPS)

* Power Factor Correction (PFC) TO-220F TO-263 Device Marking and Package Information Device Package TPA120R1K5A TPB12

TPA120R1K5A General Description

1200V Super-junction Power MOSFET The 1200V High Voltage Super-junction power MOSFET is a customized technology developed based on common 1200V Super-junction MOSFETs platform，designed by Wuxi Unigroup Microelectronics Company. The 1200V High Voltage Super-junction power MOSFET provide an extremely .

TPA120R1K5A Datasheet (602.34 KB)

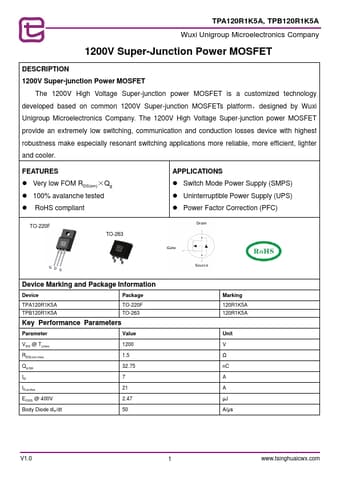

TPA120R1K5A Datasheet Preview — Preview of TPA120R1K5A PDF

Datasheet Details

Part number:

TPA120R1K5A

Manufacturer:

Unigroup

File Size:

602.34 KB

Description:

1200v super-junction power mosfet.
