TPA110R550A

1100V Super-junction Power MOSFET

TPA110R550A Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Low Power Chargers and Adapters TO-220F Device Marking and Package Information Device Pack

TPA110R550A General Description

1100V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs,designed according to the SJ principle. The deep trench SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make esp.

TPA110R550A Datasheet (507.11 KB)

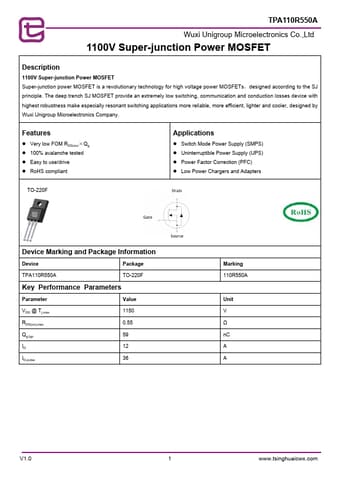

Preview of TPA110R550A PDF

Datasheet Details

Part number:

TPA110R550A

Manufacturer:

Unigroup

File Size:

507.11 KB

Description:

1100v super-junction power mosfet.
