TPA102 150-mW STEREO AUDIO POWER AMPLIFIER

TPA102 Description

www.ti.com TPA102 SLOS213D * AUGUST 1998 * REVISED SEPTEMBER 2004 150-mW STEREO AUDIO POWER AMPLIFIER .
The TPA102 is a stereo audio power amplifier packaged in an 8-pin PowerPAD™ MSOP package capable of delivering 150 mW of continuous RMS power per chan.

TPA102 Features

* 150 mW Stereo Output
* PC Power Supply Compatible
* Fully Specified for 3.3 V and 5 V Operation
* Operation to 2.5 V
* Pop Reduction Circuitry
* Internal Mid-Rail Generation
* Thermal and Short-Circuit Protection
* Surface-Mount Packa

TPA102 Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PowerPAD is a trademark of Texas Instruments. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard

📥 Download Datasheet

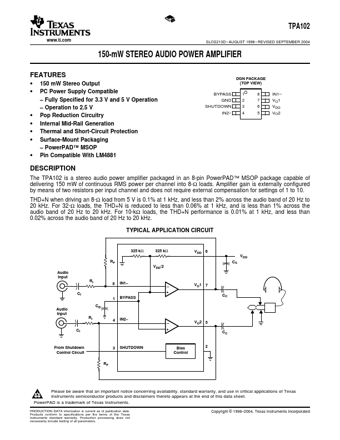

Preview of TPA102 PDF
datasheet Preview Page 2 datasheet Preview Page 3
