TPA122 Datasheet - Texas Instruments

150-mW STEREO AUDIO POWER AMPLIFIER

TPA122 Features

* 150-mW Stereo Output

* PC Power Supply Compatible

* Fully Specified for 3.3-V and 5-V Operation

* Operation to 2.5 V

* Pop Reduction Circuitry

* Internal Midrail Generation

* Thermal and Short-Circuit Protection

* Surface-Mount Packag

TPA122 General Description

The TPA122 is a stereo audio power amplifier packaged in either an 8-pin SOIC, or an 8-pin PowerPAD™ MSOP package capable of delivering 150 mW of continuous RMS power per channel into 8-Ω loads. Amplifier gain is externally configured by means of two resistors per input channel and does not require .

TPA122 Datasheet (1.31 MB)

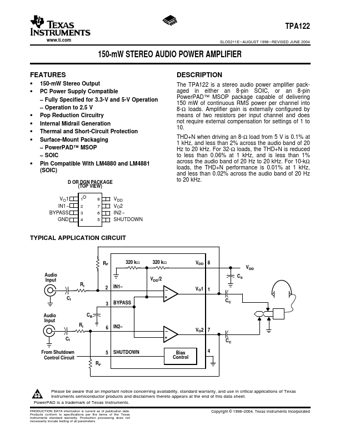

Preview of TPA122 PDF

Datasheet Details

Part number:

TPA122

Manufacturer:

Texas Instruments ↗

File Size:

1.31 MB

Description:

150-mw stereo audio power amplifier.
