TPA112 150-mW STEREO AUDIO POWER AMPLIFIER

TPA112 Description

www.ti.com TPA112 SLOS212E * AUGUST 1998 * REVISED JUNE 2004 150-mW STEREO AUDIO POWER AMPLIFIER .
The TPA112 is a stereo audio power amplifier packaged in an 8-pin PowerPAD™ MSOP package capable of delivering 150 mW of continuous RMS power per chan.

TPA112 Features

* 150-mW Stereo Output
* Wide Range of Supply Voltages
* Fully Specified for 3.3-V and 5-V Operation
* Operational From 2.5 V to 5.5 V
* Thermal and Short-Circuit Protection
* Surface-Mount Packaging
* PowerPAD™ MSOP
* SOIC
* St

TPA112 Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PowerPAD is a trademark of Texas Instruments. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard

📥 Download Datasheet

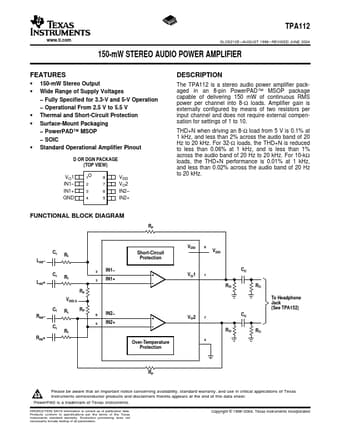

Preview of TPA112 PDF
