700V Super-junction Power MOSFET

TPA70R260M Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-220F TO-220FP-NL Device Marking and Package Information Device Package TPA70R

TPA70R260M General Description

700V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs，designed according to the SJ principle. The Multi-EPI SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make especi.

TPA70R260M Datasheet (709.54 KB)

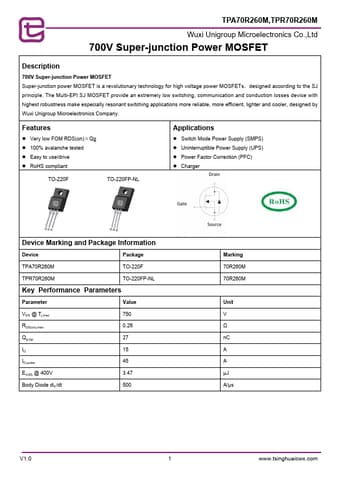

TPA70R260M Datasheet Preview — Preview of TPA70R260M PDF

Datasheet Details

Part number:

TPA70R260M

Manufacturer:

Unigroup

File Size:

709.54 KB

Description:

700v super-junction power mosfet.
