TPR65R120M Datasheet - Unigroup

650V Super-junction Power MOSFET

TPR65R120M Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-263 TO-220 TO-220FP-NL TO-247 Device Marking and Package Information Device

TPR65R120M General Description

650V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs，designed according to the SJ principle. The Multi-EPI SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make especi.

TPR65R120M Datasheet (947.13 KB)

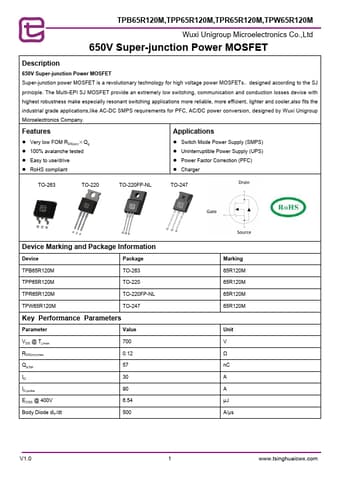

TPR65R120M Datasheet Preview — Preview of TPR65R120M PDF

Datasheet Details

Part number:

TPR65R120M

Manufacturer:

Unigroup

File Size:

947.13 KB

Description:

650v super-junction power mosfet.
