TPR70R260M Datasheet - Unigroup

TPR70R260M - 700V Super-junction Power MOSFET

700V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs,designed according to the SJ principle.

The Multi-EPI SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make especi

TPR70R260M Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-220F TO-220FP-NL Device Marking and Package Information Device Package TPA70R

TPR70R260M-Unigroup.pdf

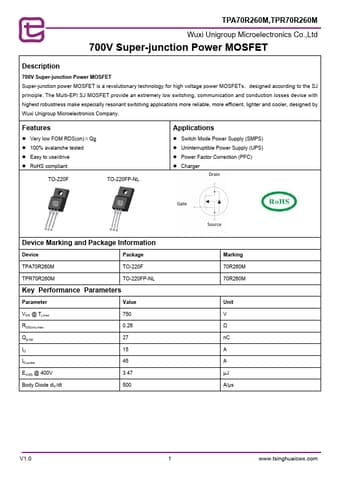

Preview of TPR70R260M PDF
TPR70R260M Datasheet Preview Page 2 TPR70R260M Datasheet Preview Page 3

Datasheet Details

Part number:

TPR70R260M

Manufacturer:

Unigroup

File Size:

705.63 KB

Description:

700v super-junction power mosfet.
