UM3502QA - Synchronous Step-Down Converter

UM3502QA Description

UM3502QA Low-Profile, 600mA, Synchronous Step-Down Converter with Integrated Inductor UM3502QA QFN24 4.0×4.0 General .
The UM3502QA is a complete power conversion solution requiring only two low cost ceramic MLCC caps.

UM3502QA Features

* z Ultra Small QFN Package 4.0×4.0×1.05 z Integrated Inductor z No Schottky Diode Required z High Efficiency: Up to 90% z 600mA Output Current z 0.6V Minimum Output Voltage z 2.5V to 5.5V Input Voltage Range z

UM3502QA Applications

* The UM3502QA is capable of delivering 600mA output current over a wide input voltage range from 2.5V to 5.5V. The UM3502QA is a high-efficiency, step-down DC-DC converter with a constant PWM frequency, current mode architecture. The UM3502QA automatically turns off the synchronous rectifier while t

📥 Download Datasheet

Preview of UM3502QA PDF

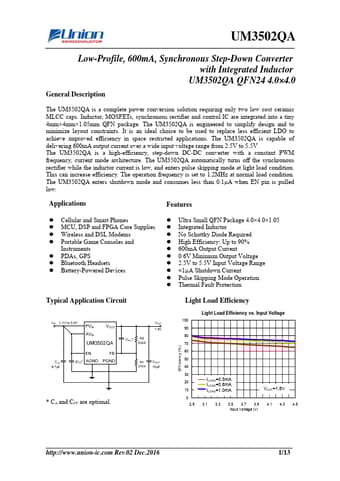

datasheet Preview Page 2 datasheet Preview Page 3
