UM3500 Datasheet, Converter, Union Semiconductor

UM3500 Features

  • Converter z High Efficiency: Up to 96% z 1.5MHz Constant Switching Frequency z 600mA Output Current z Integrated Main Switch and Synchronous Rectifier. No External Schottky Diode. z 2.5V to 5.5V

PDF File Details

Part number:

UM3500

Manufacturer:

UniON Semiconductor ↗

File Size:

323.52kb

Download:

📄 Datasheet

Description:

Synchronous step-down dc-dc converter. The UM3500 is a 1.5MHz constant frequency, slope compensated current mode PWM step-down converter. The device integrates a main swit

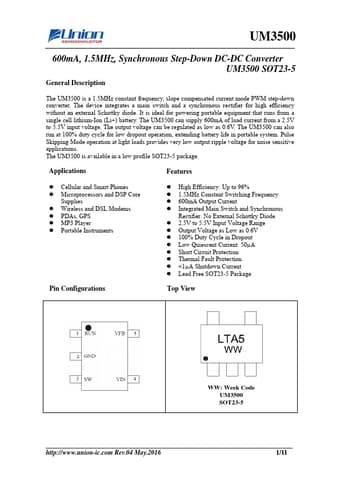

Datasheet Preview: UM3500 📥 Download PDF (323.52kb)
Page 2 of UM3500 Page 3 of UM3500

UM3500 Application

  • Applications The UM3500 is available in a low profile SOT23-5 package. Applications z Cellular and Smart Phones z Microprocessors and DSP Core Sup
