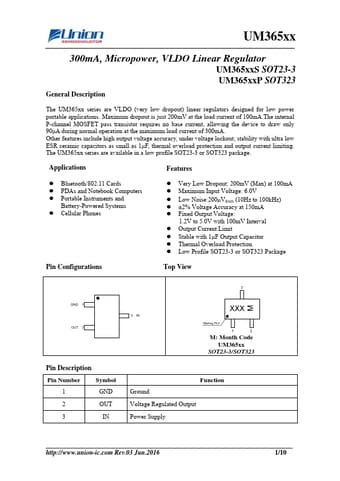

UM36541P VLDO Linear Regulator

The UM365xx series are VLDO (very low dropout) linear regulators designed for low power portable applications. Maximum dropout is just 200mV at the load current of 100mA.The internal P-channel MOSFET pass transistor requires no base current, allowing the device to draw only 90μA during normal operat.

UM36541P Features

* include high output voltage accuracy, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting. The UM365xx series are available in a low profile SOT23-3 or SOT323 package. Applications z Bluetooth/802.11 Cards z

UM36541P Datasheet (223.71 KB)
