15N60 - N-CHANNEL POWER MOSFET

Unisonic Technologies

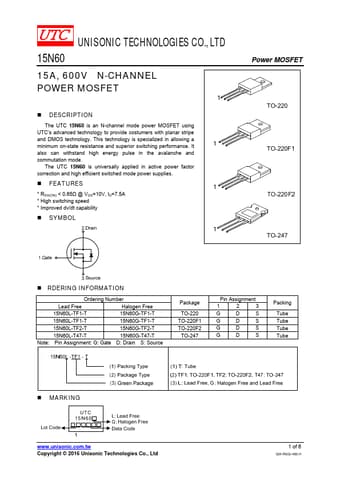

15N60 Datasheet Preview — Preview of 15N60 PDF

Datasheet Details

Part number	15N60
Manufacturer	Unisonic Technologies
File Size	276.92 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	15N60_UnisonicTechnologies.pdf

15N60 Product details

Description

Preliminary Power MOSFET The UTC 15N60 is an N-channel mode Power FET using UTC’s advanced technology to provide costumers with planar stripe and DMOS technology.This technology is specialized in allowing a minimum on-state resistance and superior switching performance.It also can withstand high energy pulse in the avalanche and commutation mode.The UTC 15N60 is universally applied in active power factor correction and high efficient switched mode power supplies.

Features

15A, 600V, RDS(ON)=0.44Ω @ VGS=10V.
Typically 23.6pF low CRSS.
High switching speed.
Improved dv/dt capability.
SYMBOL.
