15N40 - 400V N-CHANNEL POWER MOSFET

Unisonic Technologies

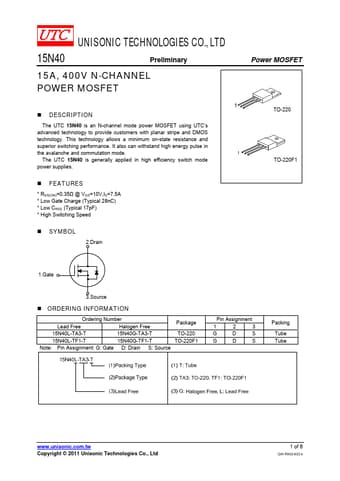

15N40 Datasheet Preview — Preview of 15N40 PDF

Datasheet Details

Part number	15N40
Manufacturer	Unisonic Technologies
File Size	274.61 KB
Description	400V N-CHANNEL POWER MOSFET
Datasheet	15N40_UnisonicTechnologies.pdf

15N40 Product details

Description

TO-220 The UTC 15N40 is an N-channel mode power MOSFET using UTC’s advanced technology to provide customers with planar stripe and DMOS technology.This technology allows a minimum on-state resistance and superior switching performance.It also can withstand high energy pulse in the avalanche and commutation mode.The UTC 15N40 is generally applied in high efficiency switch mode power supplies.1 TO-220F1

Features

RDS(ON)=0.35Ω @ VGS=10V,ID=7.5A.
Low Gate Charge (Typical 28nC).
Low CRSS (Typical 17pF).
High Switching Speed.
SYMBOL 2.Drain www. DataSheet. net/ 1.Gate 3.Source.
