30N06-Q Datasheet, Mosfet, Unisonic Technologies

30N06-Q Features

  • Mosfet
  • RDS(ON) = 40mΩ@VGS = 10 V, ID=15A
  • Ultra low gate charge ( typical 20nC )
  • Low reverse transfer Capacitance ( CRSS = typical 80 pF )
  • Fast switching

PDF File Details

Part number:

30N06-Q

Manufacturer:

Unisonic Technologies

File Size:

342.13kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The UTC 30N06-Q is a low voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate c

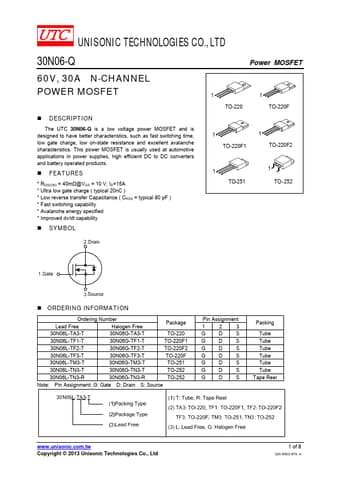

Datasheet Preview: 30N06-Q 📥 Download PDF (342.13kb)
Page 2 of 30N06-Q Page 3 of 30N06-Q

30N06-Q Application

  • Applications in power supplies, high efficient DC to DC converters and battery operated products.
  • FEATURES
  • RDS(ON) = 40mΩ@VGS =

TAGS

30N06-Q
N-CHANNEL
POWER
MOSFET
Unisonic Technologies
