30N06V-Q

N-CHANNEL POWER MOSFET

30N06V-Q Datasheet (204.68 KB)

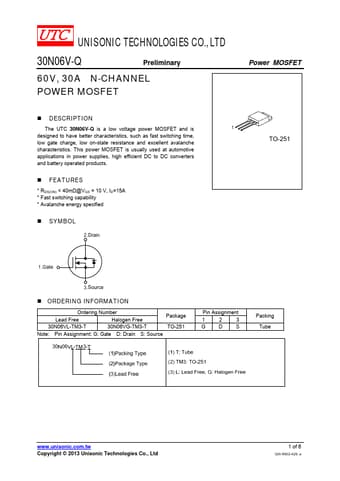

Preview of 30N06V-Q PDF

Datasheet Details

Part number:

30N06V-Q

Manufacturer:

Unisonic Technologies

File Size:

204.68 KB

Description:

N-channel power mosfet.

30N06V-Q Features

* RDS(ON) < 40mΩ@VGS = 10 V, ID=15A

* Fast switching capability

* Avalanche energy specified

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 30N06VL-TM3-T 30N06VG-TM3-T TO-251 Note: Pin Assignment: G: Gate D: Drain S: Source

30N06V-Q General Description

The UTC 30N06V-Q is a low voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and excellent avalanche characteristics. This power MOSFET is usually used at automotive applications in power supplies, high efficient.
