78D08A, 78D05A Datasheet - Unisonic Technologies

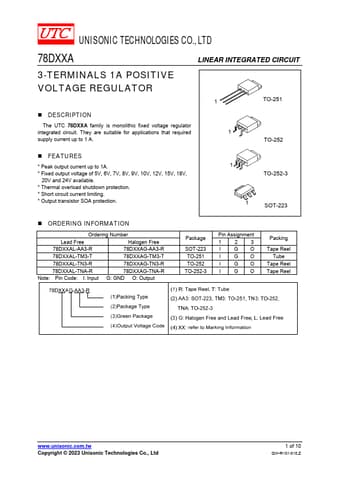

78D08A 3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR

78D08A Features

* Peak output current up to 1A.

* Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.

* Thermal overload shutdown protection.

* Short circuit current limiting.

* Output transistor SOA protection. 1 TO-252-3 1 SOT-223

* ORDERING INFORMATI

Datasheet Details

78D08A, 78D05A

Unisonic Technologies

353.42 KB

3-terminals 1a positive voltage regulator.

This datasheet PDF includes multiple part numbers: 78D08A, 78D05A.
Please refer to the document for exact specifications by model.
