L5107 Datasheet - Unisonic Technologies

CONSTANT CUTTENT BOOST CONTROLLER

L5107 Features

* TSSOP-16

* Input voltage range: 6V~45V

* Feedback voltage: 0.25V±3%

* Maximum out power of 70W

* Programmable switching frequency and LED drive current

* Ultra low EMI via dithering on the UTC L5107

* Single pin for PWM dimming

* Protection circuit: Over voltage protec

L5107 General Description

The UTC L5107 is a high powered PWM boost converter optimized for constant current applications such as driving one or more strings of high power LEDs. The powerful drive circuitry can deliver up to 70W to the LED system. The output current can be set by an external resistor connected the IADJ pin .

L5107 Datasheet (400.00 KB)

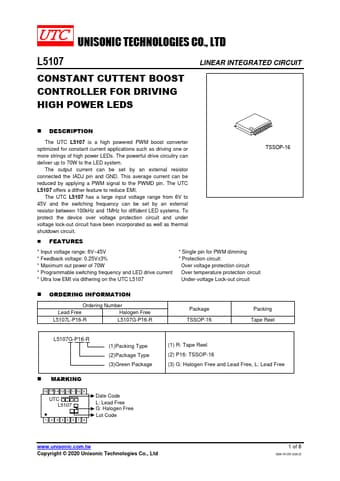

L5107 Datasheet Preview — Preview of L5107 PDF

Datasheet Details

Part number:

L5107

Manufacturer:

Unisonic Technologies

File Size:

400.00 KB

Description:

Constant cuttent boost controller.
