L5109 Datasheet, Converter, UTC

L5109 Features

  • Converter
  • Inherently Uniform LED Current
  • High Efficiency up to 83.5%
  • No Need for External Schottky Diode
  • Over Output Voltage Protection
  • OVP

PDF File Details

Part number:

L5109

Manufacturer:

UTC

File Size:

184.48kb

Download:

📄 Datasheet

Description:

White led step-up converter. The UTC L5109 is an inductor-based DC/DC converter designed to drive up to six white LEDs in series or 2 rows of LEDs with 5 for each

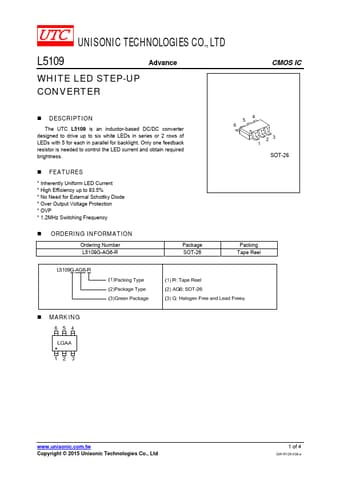

Datasheet Preview: L5109 📥 Download PDF (184.48kb)
