* Emitted color: Yellow
* Technology: AIGaInP
* Viewing angle: 30°
* Peak wavelength λp = 591nm SELECTION GUIDE Chip Material AIGaInP Chip Emitted Yellow Lens Color Water Clear Viewing Angle 30° www.DataSheet4U.com American Opto Plus LED L513LYC-30D 5mm Dia LED
L513LYC-30D Datasheet (159.78 KB)
L513LYC-30D
American Opto Plus LED
159.78 KB
5mm dia led lamp.
www.DataSheet4U.com

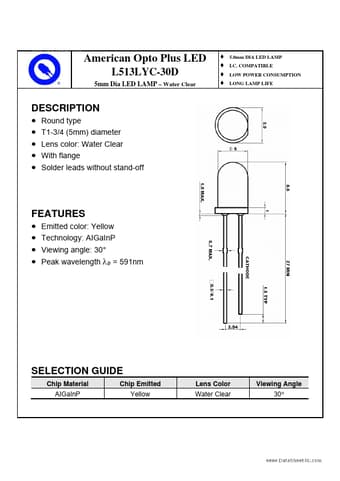

American Opto Plus LED L513LYC-30D
5mm Dia LED LAMP
* Water Clear
* 5.0mm DIA LED LAMP
* I.C. COMPATIBLE .
