SB5100

5.0A SCHOTTKY BARRIER RECTIFIER

Unisonic Technologies

SB5100 Features

* High current capability

* High surge capability

* Low power loss

* High efficiency

* SYMBOL DO-201AD + SMC (JEDEC DO-214AB) + - SMA (JEDEC DO-214AC) + SMB (JEDEC DO-214AA)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free SB5100L-SMA-R SB5100G-SMA-R S

SB5100 General Description

The UTC SB5100 is a 5.0A schottky barrier rectifier, it uses UTC’s advanced technology to provide customers with high surge capability, high current capability and high efficiency, etc. The UTC SB5100 is suitable for use in free wheeling, high frequency inverters, low voltage and polarity protection.

SB5100 Datasheet (118.55 KB)

Rating: 1 ★ (5 votes)

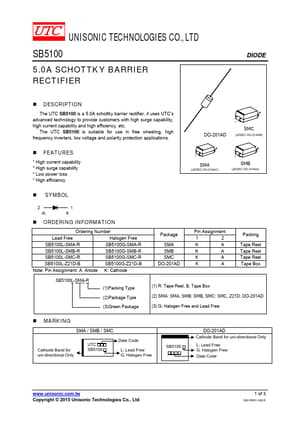

SB5100 Datasheet Preview — Preview of SB5100 PDF

Datasheet Details

Part number:

SB5100

Manufacturer:

Unisonic Technologies

File Size:

118.55 KB

Description:

5.0a schottky barrier rectifier.
