SB50-09J

90V/ 5A Rectifier

SB50-09J Features

* Low forward voltage (VF max=0.85V).

* Fast reverse recovery time (trr max=35ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure.

* Micaless package facilitating easy mounting. A:Anode C:Cathode A:Anode SANYO:TO-220ML S

SB50-09J Datasheet (73.58 KB)

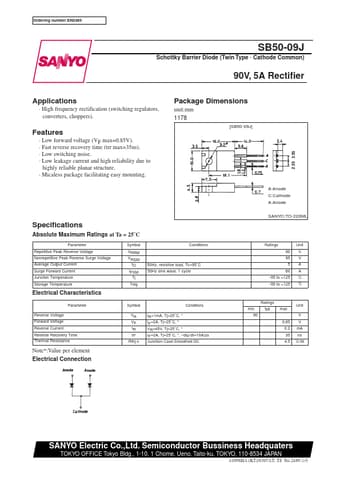

Preview of SB50-09J PDF

Datasheet Details

Part number:

SB50-09J

Manufacturer:

Sanyo Semicon Device

File Size:

73.58 KB

Description:

90v/ 5a rectifier.
Ordering number:EN2489 SB50-09J Schottky Barrier Diode (Twin Type Cathode Common) 90V, 5A Rectifier Applications High frequency rectific.
