SB500, 5 AMP SILICON BRIDGE RECTIFIERS

DIOTEC ELECTRONICS CORP.18020 Hobart Blvd., Unit B Gardena, CA 90248 U.S.A Tel.: (310) 767-1052 Fax: (310) 767-7958 Data Sheet No.BRSB-500-1C 5 AM.

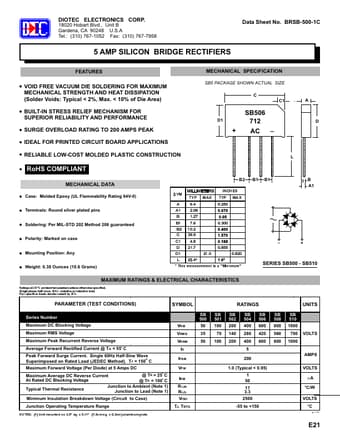

datasheet Preview Page 1 from Datasheet4u.com

SB500-DIOTEC.pdf

SB500 Datasheet Preview — Preview of SB500 PDF

Datasheet Details

Part number:

SB500

Manufacturer:

DIOTEC

File Size:

320.15 KB

Description:

5 AMP SILICON BRIDGE RECTIFIERS

Features

* MECHANICAL SPECIFICATION VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM MECHANICAL STRENGTH AND HEAT DISSIPATION (Solder Voids: Typical < 2%, Max. < 10% of Die Area) BUILT-IN STRESS RELIEF MECHANISM FOR SUPERIOR RELIABILITY AND PERFORMANCE SURGE OVERLOAD RATING TO 200 AMPS PEAK IDEAL FOR PRINTED CIRCU

Applications

* SB5 PACKAGE SHOWN ACTUAL SIZE C C1 SB506 D1 + 712 AC _ A D RELIABLE LOW-COST MOLDED PLASTIC CONSTRUCTION L RoHS COMPLIANT MECHANICAL DATA Case: Molded Epoxy (UL Flammability Rating 94V-0) Terminals: Round silver plated pins Soldering: Per MIL-STD 202 Method 208 guaranteed Polarity: Marked o
