SB50-18

180V/ 5A Rectifier

SB50-18 Features

* Low forward voltage (VF max=0.85V).

* Fast reverse recovery time (trr max=40ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure. JEDEC:TO-220AB EIAJ:SC-46 1:Anode 2:Cathode 3:Anode Specifications Absolute Maximum Ratings

SB50-18 Datasheet (74.51 KB)

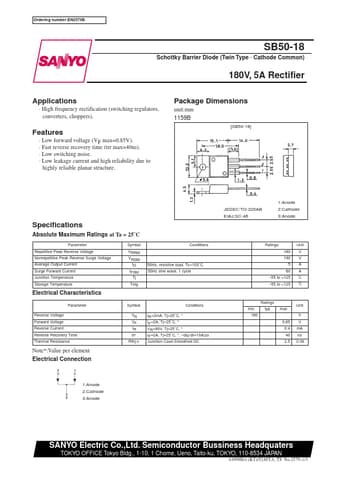

Preview of SB50-18 PDF

Datasheet Details

Part number:

SB50-18

Manufacturer:

Sanyo Semicon Device

File Size:

74.51 KB

Description:

180v/ 5a rectifier.
Ordering number:EN2579B SB50-18 Schottky Barrier Diode (Twin Type
* Cathode Common) 180V, 5A Rectifier Applications
* High frequency rectifi.
