SB50-18K

180V/ 5A Rectifier

SB50-18K Features

* Low forward voltage (VF max=0.85V).

* Fast reverse recovery time (trr max=40ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure. A:Anode C:Cathode SANYO:TO-220MF Specifications Absolute Maximum Ratings at Ta = 25˚C Parame

SB50-18K Datasheet (73.78 KB)

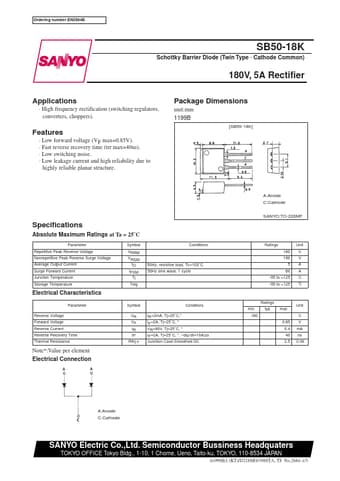

Preview of SB50-18K PDF

Datasheet Details

Part number:

SB50-18K

Manufacturer:

Sanyo Semicon Device

File Size:

73.78 KB

Description:

180v/ 5a rectifier.
Ordering number:EN2684B SB50-18K Schottky Barrier Diode (Twin Type
* Cathode Common) 180V, 5A Rectifier Applications
* High frequency rectif.
