U74AUP1G02 Datasheet, Gate, Unisonic Technologies

U74AUP1G02 Features

• Gate
• Wide supply voltage range from 0.8V to 3.6V
• Inputs accept voltages up to 3.6V
• IOFF supports partial-power-down mode
• Low static power consumption;

PDF File Details

Part number:

U74AUP1G02

Manufacturer:

Unisonic Technologies

File Size:

246.57kb

Download:

📄 Datasheet

Description:

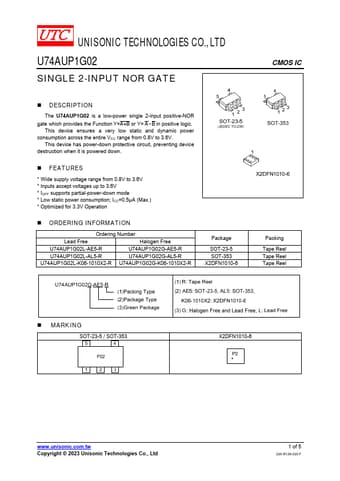

Single 2-input nor gate. The U74AUP1G02 is a low-power single 2-input positive-NOR gate which provides the Function Y=A+B or Y= Α

Β in positive logi
