U74AUP1G07

LOW-POWER BUFFER

Unisonic Technologies

U74AUP1G07 Features

* Wide supply voltage range from 0.8V to 3.6V

* Inputs accept voltages up to 3.6V

* IOFF supports partial-power-down mode

* Low static power consumption; ICC=0.5μA (Max.)

* Optimized for 3.3V Operation

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AUP1

U74AUP1G07 General Description

The U74AUP1G07 provides the single non-inverting buffer with open-drain output. The output of the device is an open drain and can be connected to other open-drain outputs to implement active-LOW wire-OR active-HIGH wire-AND functions. This device ensures a very low static and dynamic power consumpti.

U74AUP1G07 Datasheet (237.20 KB)

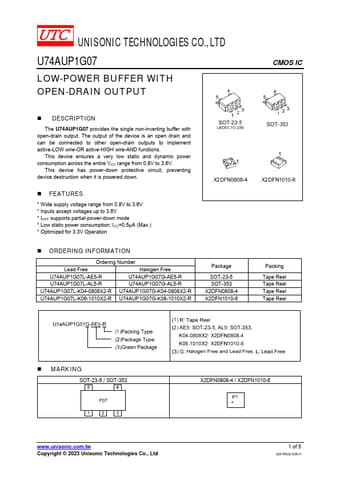

U74AUP1G07 Datasheet Preview — Preview of U74AUP1G07 PDF

Datasheet Details

Part number:

U74AUP1G07

Manufacturer:

Unisonic Technologies

File Size:

237.20 KB

Description:

Low-power buffer.
