U74AUP1G126 Datasheet, Gate, Unisonic Technologies

U74AUP1G126 Features

  • Gate
  • Wide supply voltage range from 0.8V to 3.6V
  • Inputs accept voltages up to 3.6V
  • IOFF supports partial-power-down mode
  • Low static power consumption;

PDF File Details

Part number:

U74AUP1G126

Manufacturer:

Unisonic Technologies

File Size:

237.41kb

Download:

📄 Datasheet

Description:

Single bus buffer gate. The U74AUP1G126 is single bus buffer gate with 3-state output. The output is disabled When the output enable (OE) is low. When OE is

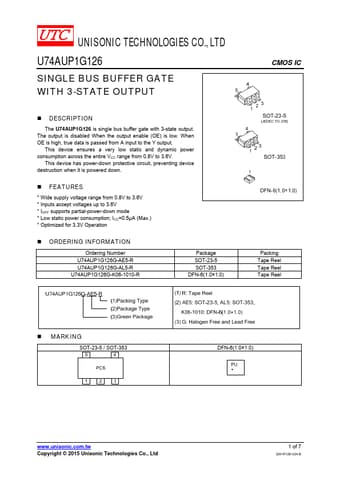

Datasheet Preview: U74AUP1G126 📥 Download PDF (237.41kb)
Page 2 of U74AUP1G126 Page 3 of U74AUP1G126
