CHM1080-98F Datasheet - United Monolithic Semiconductors

CHM1080-98F 71-86GHz Single Side Band Mixer

The CHM1080-98F is a multifunction monolithic mixer, which integrates a balanced sub-harmonic cold FET mixer, with a LO buffer. It is usable both for up-conversion and down-conversion and also compatible with GX Baseband configuration. D It is designed for the E-band telecommunication appli.

CHM1080-98F Features

* Broadband RF performances: 71-86GHz

* -11dB Conversion Gain

* 40dB 2LO isolation

* 10dBm Input Power at 1dB compression

* DC bias: Vd=3.5V @Id=90mA

* Chip size 3.43x1.5x0.07mm Conversion Gain (dB) Conversion Gain -5 -6 -7 -8 USB LSB -9 -10 -11 -12 -13 -14 -15

CHM1080-98F-UnitedMonolithicSemiconductors.pdf

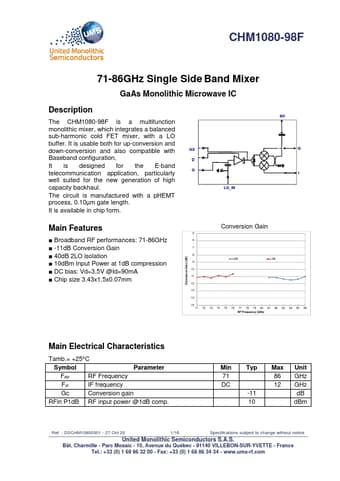

Preview of CHM1080-98F PDF
