CHM1191 Datasheet - United Monolithic Semiconductors

CHM1191 GaAs Monolithic Microwave IC

The CHM1191 is a balanced Schottky diode mixer based on a six quarter wave ring structure. It could be use in receiver or transmitter part. This circuit is manufactured with the BESMMIC process: 1 µm Schottky diode device, air bridges, via holes through the substrate, stepper lithography. An electri.

CHM1191 Features

* 22-24 GHz LO frequency range

* IF from 1 to 3 GHz

* Low conversion loss up & down

* High LO/RF isolation

* Low LO input power

* Small chip size: 1.73 x 1.53 x 0.10 mm Typical conversion characteristic (measurement in test fixture) Main Characteristics Tamb. = 25°C Symbol

CHM1191_UnitedMonolithicSemiconductors.pdf

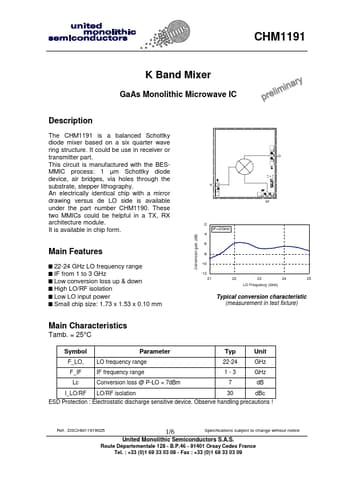

Preview of CHM1191 PDF
CHM1191 Datasheet Preview Page 2 CHM1191 Datasheet Preview Page 3

Datasheet Details

Part number:

CHM1191

Manufacturer:

United Monolithic Semiconductors

File Size:

90.78 KB

Description:

Gaas monolithic microwave ic.
