UCC2941-5, UCC2941-3, (UCCx941-x) 1V Synchronous Boost Converter

www.DataSheet4U.com application INFO available UCC2941-3/-5/-ADJ UCC3941-3/-5/-ADJ 1V Synchronous Boost Converter .
The UCC3941 family of low input voltage single inductor boost converters are optimized to operate from a single or dual alkaline cell, and step up to.

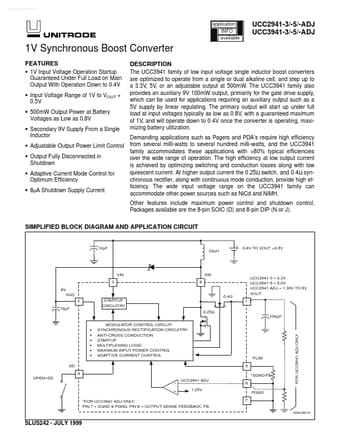

datasheet Preview Page 1 from Datasheet4u.com

UCC2941-3_Unitrode.pdf

UCC2941-5 Datasheet Preview — This datasheet PDF includes multiple part numbers: UCC2941-5, UCC2941-3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UCC2941-5, UCC2941-3

Manufacturer:

Unitrode

File Size:

214.39 KB

Description:

(UCCx941-x) 1V Synchronous Boost Converter

Note:

This datasheet PDF includes multiple part numbers: UCC2941-5, UCC2941-3.
Please refer to the document for exact specifications by model.

Features

* 1V Input Voltage Operation Startup Guaranteed Under Full Load on Main Output With Operation Down to 0.4V
* Input Voltage Range of 1V to VOUT + 0.5V
* 500mW Output Power at Battery Voltages as Low as 0.8V
* Secondary 9V Supply From a Single Inductor

Applications

* requiring an auxiliary output such as a 5V supply by linear regulating. The primary output will start up under full load at input voltages typically as low as 0.8V, with a guaranteed maximum of 1V, and will operate down to 0.4V once the converter is operating, maximizing battery utilization. Demand
