UCC2912, UCC3912, Programmable Hot Swap Power Manager

ą D Integrated 0.15-Ω Power MOSFET D 3-V to 8-V Operation D Digital Programmable Current Limit from 0 A to 3 A D Electronic Circuit Breaker Function D.
The UCC3912 family of hot swap power managers provides complete power management, hot swap capability, and circuit breaker functions.

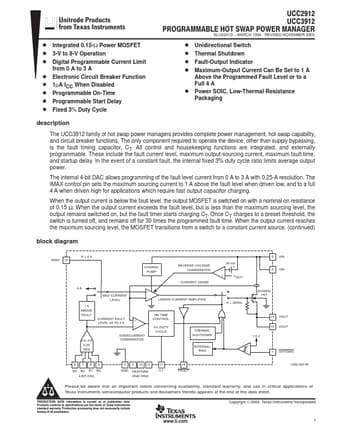

datasheet Preview Page 1 from Datasheet4u.com

UCC3912-Unitrode.pdf

UCC2912 Datasheet Preview — This datasheet PDF includes multiple part numbers: UCC2912, UCC3912. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UCC2912, UCC3912

Manufacturer:

Unitrode

File Size:

962.80 KB

Description:

Programmable Hot Swap Power Manager

Note:

This datasheet PDF includes multiple part numbers: UCC2912, UCC3912.
Please refer to the document for exact specifications by model.

Features

* include an open drain FAULT output indicator, thermal shutdown, under voltage lockout, and a low thermal resistance small outline package. absolute maximum ratings over operating free-air temperature (unless otherwise noted)†} VIN

Applications

* which require fast output capacitor charging. When the output current is below the fault level, the output MOSFET is switched on with a nominal on resistance of 0.15 Ω. When the output current exceeds the fault level, but is less than the maximum sourcing level, the output remains switched on, but t
