UCC29002

Advanced 8-Pin Load-Share Controller

UCC29002 Features

* 1 High Accuracy, Better Than 1% Current Share Error at Full Load

* High-Side or Low-Side (GND Reference) CurrentSense Capability

* Ultra-Low Offset Current Sense Amplifier

* Single Wire Load Share Bus

* Full Scale Adjustability

* Intel® SSI Load Share

UCC29002 General Description

The UCC39002 device is an advanced, highperformance, and low-cost load share controller that provides all necessary functions to parallel multiple independent power supplies or DC-to-DC modules. Targeted for high-reliability applications in server, workstation, telecom, and other distributed power s.

UCC29002 Datasheet (1.29 MB)

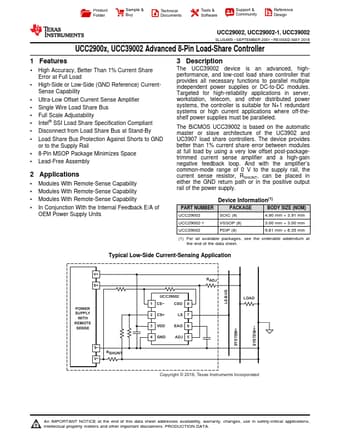

Preview of UCC29002 PDF

Datasheet Details

Part number:

UCC29002

Manufacturer:

Texas Instruments ↗

File Size:

1.29 MB

Description:

Advanced 8-pin load-share controller.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design UCC29002, UCC29002-1, UCC39002 SLUS495I
