UCC2926

+-20A Integrated Current Sensor

UCC2926 Features

* Integral Non-inductive Current Sense Element with Internal Kelvin Connections

* 20A Current Rating

* Bi-directional, High Side or Low Side Sensing

* Internal Temperature Nulling Circuitry for Current Sense Element and Amplifier

* Logic Compatible Current Dir

UCC2926 General Description

The UCC3926 Current Sensor IC contains a wideband, transimpedance amplifier for converting the current through an internal, non-inductive 1.3mΩ shunt resistor into a proportional voltage. The sense element operates in both high-side (VDD referenced) and low-side (GND referenced) applications. The UC.

UCC2926 Datasheet (214.94 KB)

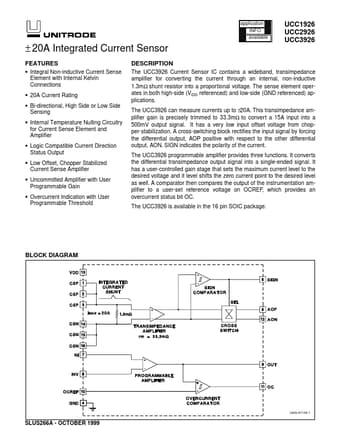

Preview of UCC2926 PDF

Datasheet Details

Part number:

UCC2926

Manufacturer:

Unitrode

File Size:

214.94 KB

Description:

+-20a integrated current sensor.
