2SK213 N-Channel 100V MOSFET

2SK213 Description

2SK213-VB 2SK213-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.017 at VGS = 10 V ID .

2SK213 Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package

2SK213 Applications

* Isolated DC/DC Converters D RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed

📥 Download Datasheet

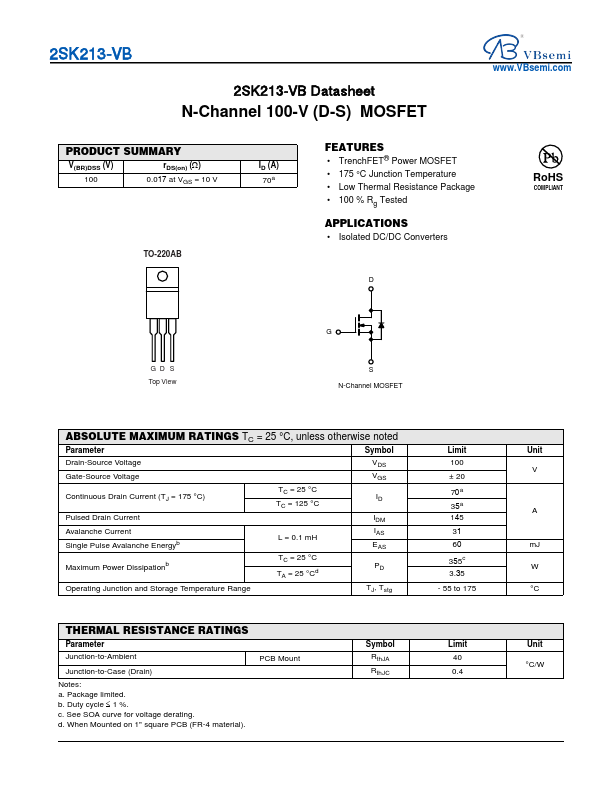

Preview of 2SK213 PDF

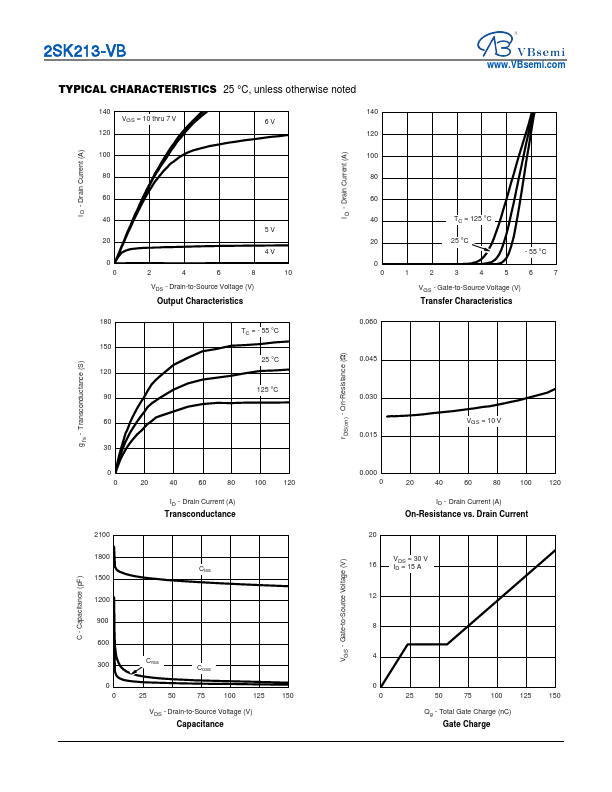

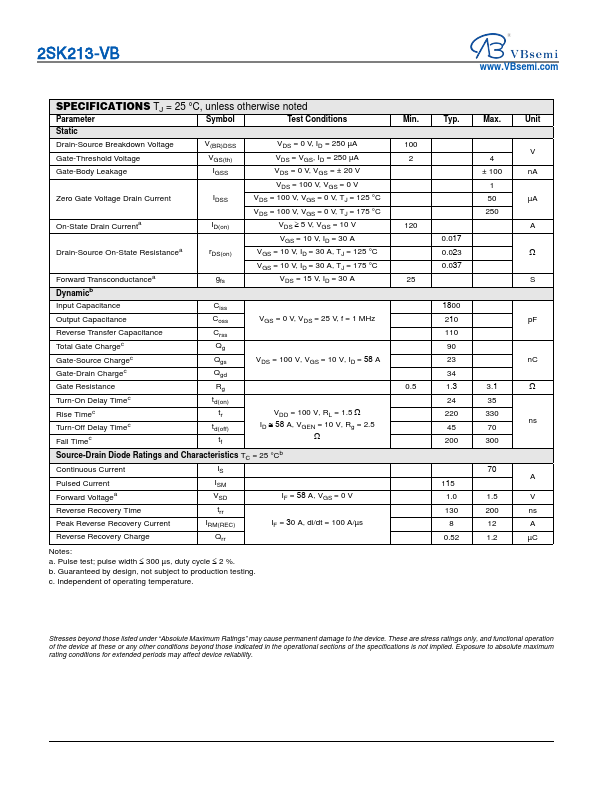

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK213
Manufacturer
VBsemi
File Size
216.18 KB
Datasheet
2SK213-VBsemi.pdf
Description
N-Channel 100V MOSFET
