Datasheet Summary
2SK2110-VB

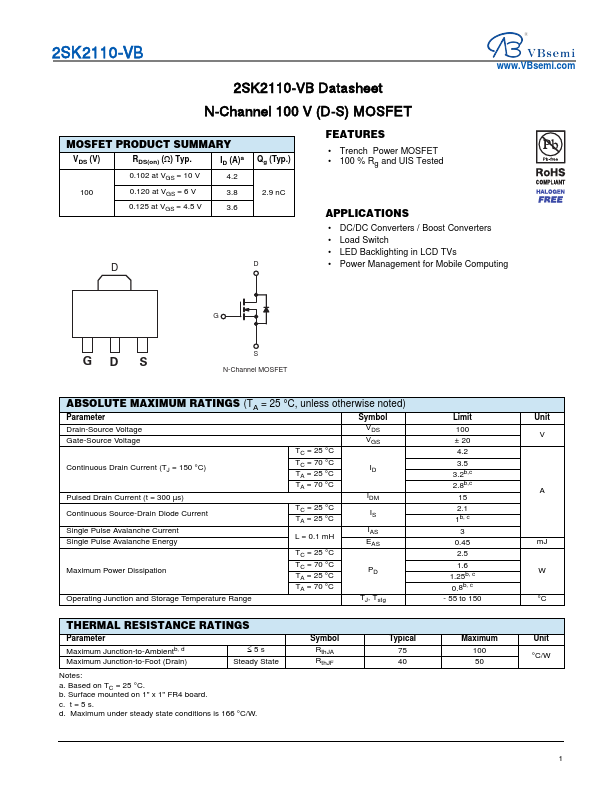

2SK2110-VB Datasheet N-Channel 100 V (D-S) MOSFET
.VBsemi.
MOSFET PRODUCT SUMMARY
VDS (V)
RDS(on) () Typ.
ID (A)a
0.102 at VGS = 10 V
0.120 at VGS = 6 V
0.125 at VGS = 4.5 V
Qg (Typ.) 2.9 nC
Features
- Trench Power MOSFET
- 100 % Rg and UIS Tested
APPLICATIONS
- DC/DC Converters / Boost Converters
- Load Switch
- LED Backlighting in LCD TVs
- Power Management for Mobile puting
GD S
S N-Channel...
