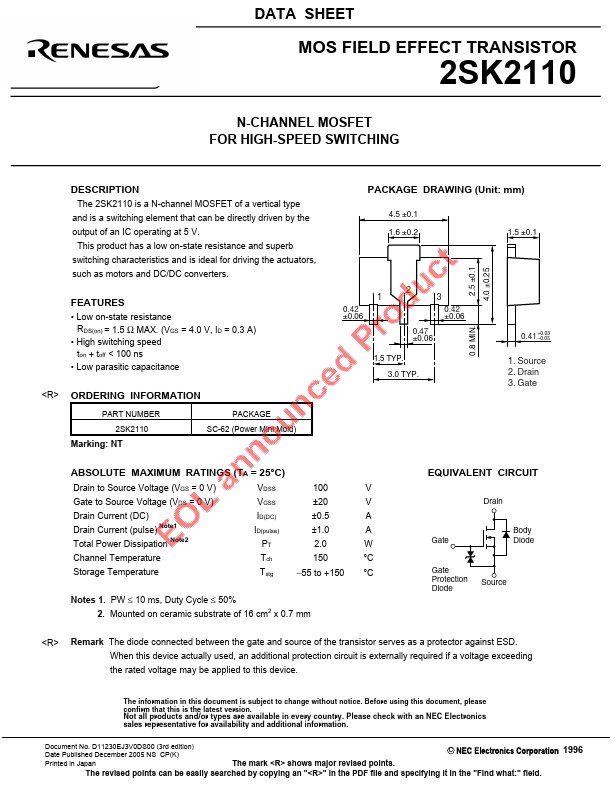

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
N-CHANNEL MOSFET FOR HIGH-SPEED SWITCHING
DESCRIPTION
The 2SK2110 is a N-channel MOSFET of a vertical type and is a switching element that can be directly driven by the output of an IC operating at 5 V.
This product has a low on-state resistance and superb switching characteristics and is ideal for driving the actuators, such as motors and DC/DC converters.
Features
- Low on-state resistance RDS(on) = 1.5 Ω MAX. (VGS = 4.0 V, ID = 0.3 A)
- High switching speed ton + toff < 100 ns
- Low parasitic capacitance
<R> ORDERING INFORMATION
PART NUMBER 2SK2110
Marking: NT
PACKAGE SC-62 (Power Mini Mold)
PACKAGE DRAWING (Unit: mm)
4.5 ±0.1 1.6...
