Datasheet Details
| Part number | 2SK2112 |
|---|---|
| Manufacturer | VBsemi |
| File Size | 200.86 KB |
| Description | 100V N-Channel MOSFET |
| Datasheet | 2SK2112-VBsemi.pdf |
|
|

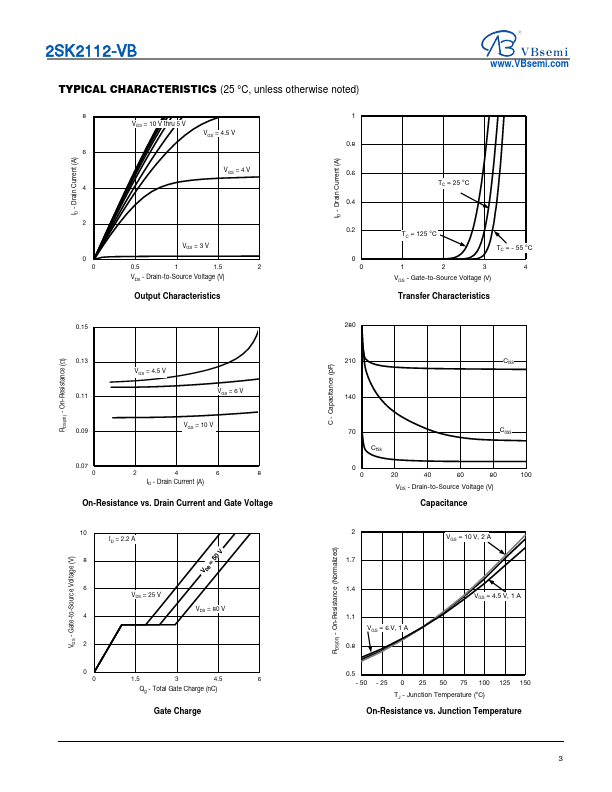

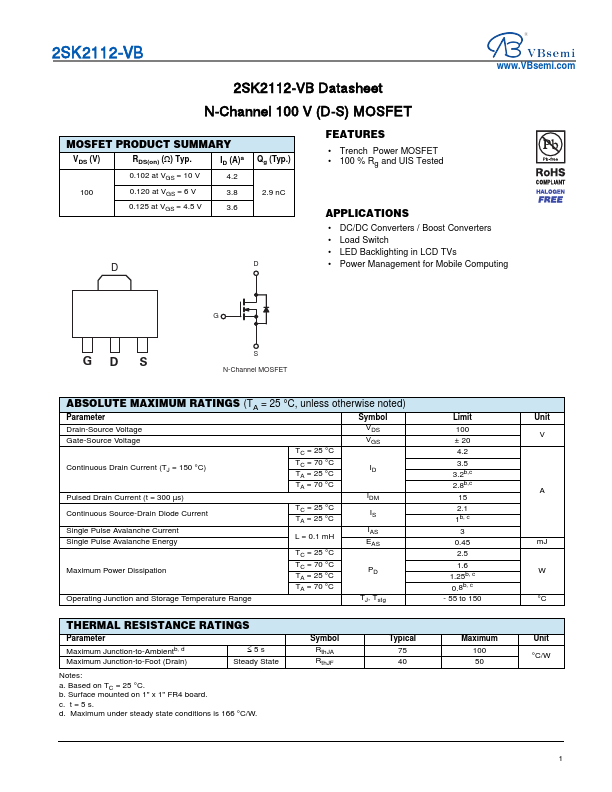

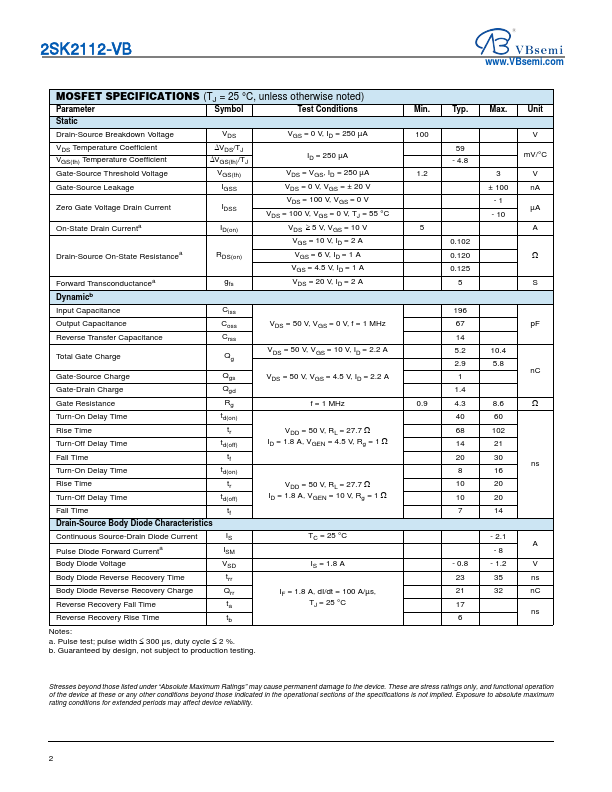

Overview: 2SK2112-VB 2SK2112-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Typ. ID (A)a 0.102 at VGS = 10 V 4.2 100 0.120 at VGS = 6 V 3.8 0.125 at VGS = 4.5 V 3.6 Qg (Typ.) 2.
| Part number | 2SK2112 |
|---|---|
| Manufacturer | VBsemi |
| File Size | 200.86 KB |
| Description | 100V N-Channel MOSFET |
| Datasheet | 2SK2112-VBsemi.pdf |
|
|
|
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
2SK2112 | N-Channel MOSFET | NEC |
 |
2SK2112 | N-Channel MOSFET | Kexin |
 |
2SK2112 | N-CHANNEL MOSFET | Renesas |
