* DT-Trench Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Primary Side Switch D G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless ot
F630N
VBsemi
231.83 KB
N-channel 200v mosfet.

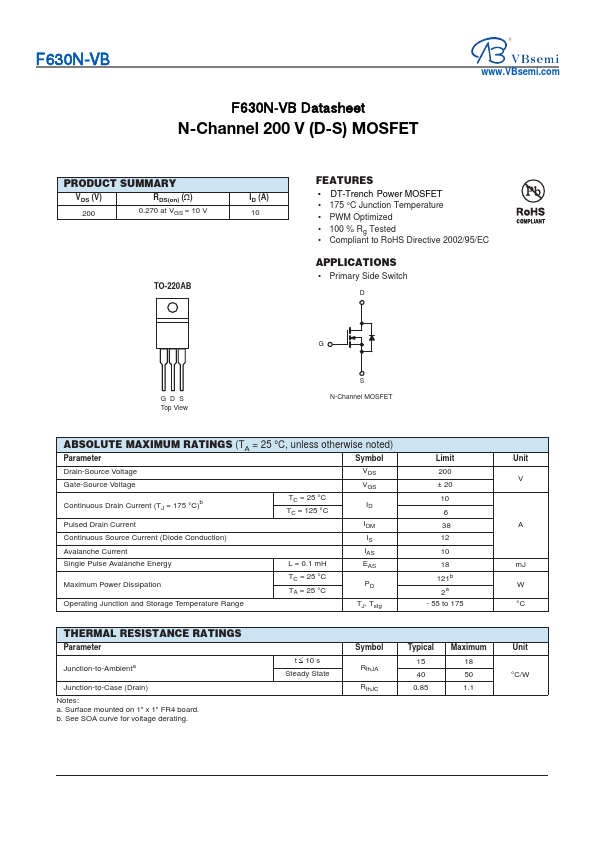

F630N-VB F630N-VB Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 200 RDS(on) (:) 0.270 at VGS = 10 V ID (A) 10 T.
