HM24N20 - N-Channel 200V MOSFET

HM24N20 Description

HM24N20-VB HM24N20-VB Datasheet N-Channel 200 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.017 at VGS = 10 V 200 0..

HM24N20 Features

* Thunder power MOSFET
* Maximum 175 °C junction temperature

HM24N20 Applications

* D
* Power supplies: - Uninterruptible power supplies - AC/DC switch-mode power supplies - Lighting
* Synchronous rectification G
* DC/DC converter
* Motor drive switch
* DC/AC inverter S
* Solar micro inverter N-Channel MOSFET
* C

📥 Download Datasheet

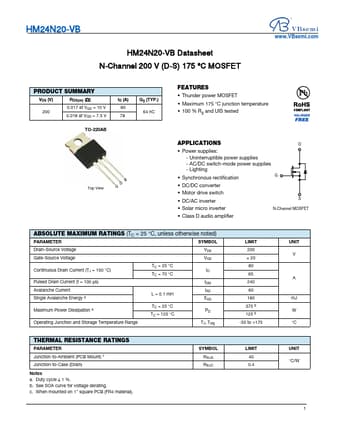

Preview of HM24N20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM24N20
Manufacturer
VBsemi
File Size
212.22 KB
Datasheet
HM24N20-VBsemi.pdf
Description
N-Channel 200V MOSFET
